Steam Sterilizer

  • Home
  • Steam Sterilizer
small logoSteam Sterilizer

Smart Sterilization Solutions

The production programs in the pharmaceutical industry and Hospitals are aimed at maximum safety with top quality. Steam Sterilizer continues to be one of the ancient and widely used sterilization techniques in the Life-Science & HealthCare Industry. The process systems now have to meet the most exacting demands for temperature and pressure / Vacuum control and process documentation. A sterilization systems represents Therefore, Sterimac takes measures to ensure that our Sterilizers provide and life cycle economy. Every Sterilizer is produced to your specifications and needs.

small logoSystem Elements

Integrated OT Design

1

Solutions in Glass Ampoules, Vials & Bottles.

2

Filters and Respective Accessories.

3

Empty Glassware, Utensils, Instruments.

4

Closures, Vessels, Machine and Change Parts.

5 1

Porous Materials Like Garments, Fabrics, etc.

6 1

Solid Materials.

Description

  • Fully automatic high-speed medical sterilizer.
  • Triple-walled chamber with steam jacket.
  • Double-door with radial locking system.
  • Master-slave HMI, lights, alarms included.
  • Expandable silicone gasket up to 140°C.
  • Standard gauges, trays, hooks included.
  • Made of SS 304/316/316L steel.
  • Working pressure: 1.2 & 2.1 kgf/cm².
  • Operating temperature: 121°C / 134°C.
  • Power supply: 440V, 3-phase, 50Hz.
  • Safety: pressure switch, valves, locks.
  • Door lock, low water protection, cut-off.
  • Hydrostatic test: chamber & jacket.
  • Meets BIS IS:3829 with ISI.
  • Includes manual, warranty, test certificates.
  • Vent filters with auto sterilization.
  • Optional jacket cooling for liquids.
  • Electric steam generator for labs.
  • Steam quality testing as EN285.
  • Terminal sterilization with water spray.
  • Vacuum test option for ampoules.
  • Sanitary piping with 2% slope.
  • Comprehensive tests: vacuum, leak, Bowie-Dick.

Rectangular Autoclave

Sr No.Model No.Dimension (mm)Capacity
1Mac A - 4306000 X 600 X 1200430 ltr
2Mac A - 324600 X 600 X 900324 ltr
3Mac A - 182450 X 450 X 900180 ltr

Cylinder Autoclave

Sr No.Model No.Dimension (mm)Capacity
1Mac A - 75Dia 400 X 600 Depth.75(2Drum)
2Mac A - 176Dia 500 X 900 Depth.176(3Drum)
3Mac A - 235Dia 500 X 1200 Depth.235(4Drum)
small logoSTEAM STERILIZER

Fully Automatic Steam Sterilizer

22 1

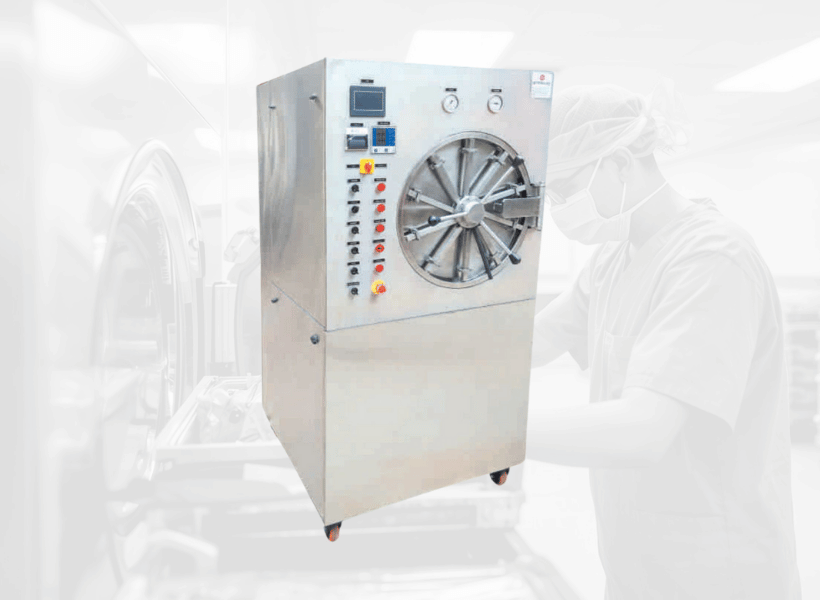

Mac Auto - ACC

23 1

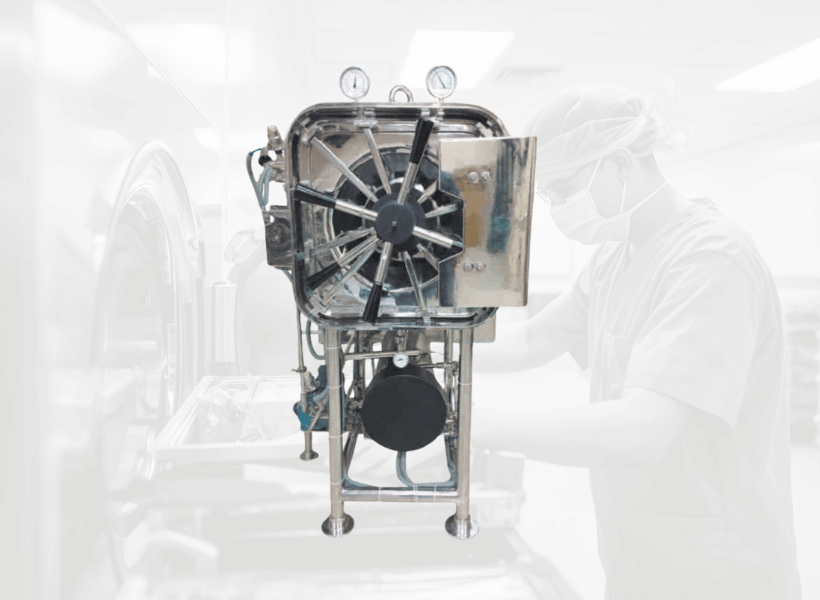

Mac - Auto AS

24 1

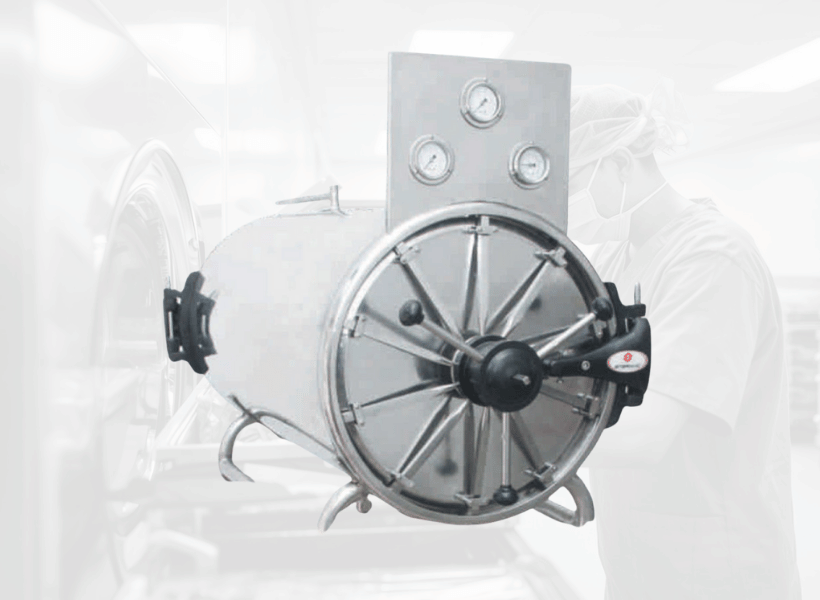

Mac - Semi AC
